Home EV Charger Installation: Is a Switchboard Upgrade Necessary?

Why Upgrading Your Switchboard is Crucial for Safe EV Charger Installation at Home

Absolutely! In many households across Melbourne, the installation of an EV charger frequently requires a comprehensive switchboard upgrade. Numerous older switchboards do not possess the essential load capacity, RCD protection, or sufficient circuit space necessary for the safe and compliant installation of an electric vehicle charger. Engaging a licensed electrician to conduct a thorough assessment is vital to ensure your switchboard is upgraded appropriately. This guarantees that your home can securely support the charging of your EV without incurring any associated risks or complications. Safety should always be the paramount concern in all electrical installations.

As the popularity of electric vehicles continues to rise in Melbourne, an increasing number of homeowners are opting to install EV chargers in their garages or driveways. However, many people are often unaware that proper preparation of your home’s electrical system is a critical step in this process. This preparation begins with a comprehensive examination of your switchboard. It is essential to ascertain that your electrical infrastructure can adequately handle the demands of an EV charger. This proactive approach not only enhances safety but also boosts efficiency, making your charging experience significantly more reliable and effective.

At Direct Point Electrical, we have successfully completed numerous EV charger installations across Berwick, Narre Warren, and Cranbourne in Melbourne’s outer eastern suburbs. In nearly every instance, the first component we evaluate is the switchboard, ensuring that it meets all necessary standards for safe and effective charging. Our expertise guarantees that each installation adheres to local regulations while optimising performance. By prioritising safety and compliance, we provide our clients with peace of mind, knowing that their charging solutions are both efficient and secure.

Understanding the Distinct Requirements of EV Chargers Compared to Standard Power Points

EV chargers are fundamentally different from typical household appliances such as your toaster or washing machine. Most residential charging units, particularly the 7kW and 22kW models, necessitate:

• A dedicated circuit created to manage the electrical load efficiently, ensuring safety and reliability
• Mandatory RCD protection, as outlined by AS/NZS 3000 standards, to mitigate potential risks associated with electrical faults
• Sufficient amp capacity, generally ranging from 32A to 50A, to accommodate the specific requirements of the charger
• Effective load balancing to avert the risk of overloading other circuits within your home’s electrical system

Consequently, connecting an EV charger to an outdated fuse box or an overloaded switchboard is not only imprudent; it presents significant safety hazards and fails to meet current regulatory standards. For comprehensive guidance on the requirements for EV chargers in residential environments, consulting with professionals who grasp the intricacies involved is essential.

Identifying the Need for an Upgrade to Your Switchboard

If your home was constructed more than 20 years ago, it is highly likely that your switchboard lacks the capacity to effectively support an EV charger. Here are several indicators we look for during our evaluations:

• Old ceramic fuses or asbestos backing, both of which are outdated and pose health risks
• The absence of RCD or safety switch protection, which is crucial for preventing electrical accidents
• Limited circuit space that restricts the installation of a new dedicated circuit for the charger
• Signs of burn marks, buzzing noises, or frequent tripping when using multiple appliances
• Lack of a 3-phase supply if you plan to install a faster 22kW charger

Any of these warning signs indicate potential risks for both safety and EV compatibility within your home and should not be overlooked. It is imperative to address these concerns promptly to ensure a safe environment for your family and electronic devices.

Note: The Electric Vehicle Council advises the installation of a dedicated circuit for your EV. This precautionary measure helps to prevent the overloading of existing circuits in your home. When establishing a dedicated circuit, it is recommended to opt for a 15amp outlet and charger instead of the standard 10amp circuit, as this adjustment can enhance your charging rate by 50% and significantly reduce your charging time.

Step-by-Step Guide to Upgrading Your Switchboard for EV Charger Installation

At Direct Point Electrical, we aim to make the upgrade process as seamless and hassle-free as possible:

1. Site Assessment – Our team conducts a thorough inspection of your existing switchboard, wiring, and main power supply to identify any necessary upgrades.
2. Load Calculation – We assess whether your residence can handle the additional load from the EV charger, ensuring optimal performance.

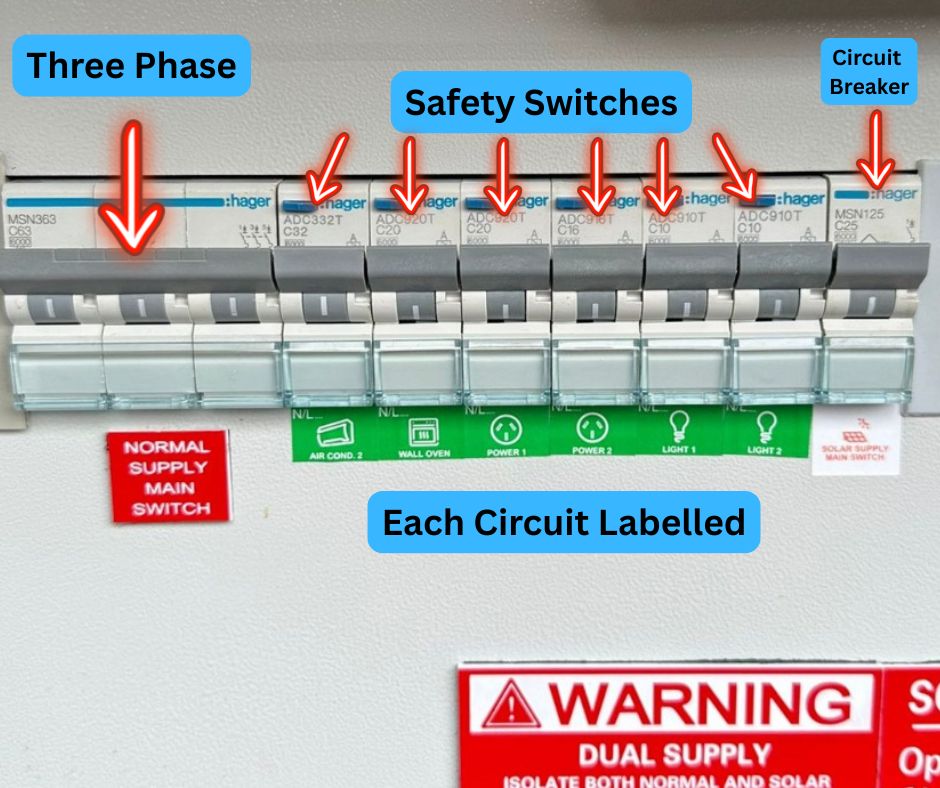

3. Upgrade Planning – If an upgrade is required, we provide a detailed quote for a new compliant switchboard equipped with RCDs, surge protection, and ample space for the EV charger.
4. Documentation & Compliance – We manage all necessary paperwork with your energy distributor (such as AusNet or United Energy) and issue a Certificate of Electrical Safety upon completion.

Depending on the current condition and setup of your switchboard, most upgrades can be completed within a single day. This allows you to quickly enjoy the convenience of charging your EV at home without unnecessary delays.

Compliance Requirements for EV Charger Installations in Victoria

All electrical work performed in Victoria must comply with the AS/NZS 3000 Wiring Rules, which govern installations of EV chargers. A licensed electrician is required to:

• Implement RCD protection for the circuit to safeguard against electrical faults and enhance safety
• Ensure that the load from the charger does not exceed the main switch capacity to prevent overloads
• Submit all necessary forms to your energy distributor to guarantee compliance
• Provide a Certificate of Electrical Safety upon completion of the installation, ensuring peace of mind

Attempting any DIY or unlicensed installations is not only illegal; it also voids warranties and can lead to severe fire hazards or insurance claim denials. It is always best to work with professionals to ensure your installation is safe, efficient, and compliant with all regulations.

Considerations for Homes with Existing Solar Panels or Battery Systems

This is excellent news! However, it remains critical to analyse how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning and consideration.

We will work closely with you to:

• Schedule charging times to maximise the use of solar energy, ensuring efficiency and cost-effectiveness
• Confirm that your inverter and battery configuration can accommodate the energy draw from the charger
• Recommend appropriate charger models that incorporate smart load management capabilities for optimal efficiency and performance

Is a 3-Phase Power Supply Upgrade Necessary for EV Charging?

Not necessarily. A 7kW charger typically operates effectively on single-phase power for most users. However, if:

• You desire faster charging times to minimise waiting
• You own two electric vehicles that need simultaneous charging
• Or you are operating high-load appliances concurrently

… then considering a 3-phase upgrade could be beneficial. We can provide expert advice on this during your initial inspection to help you make informed decisions regarding your energy needs and charging requirements.

Essential Factors to Ensure a Successful EV Charger Installation at Your Home

If you’re thinking about installing an EV charger in your home, prioritising your switchboard is crucial. At Direct Point Electrical, we provide free site inspections, transparent pricing, and a streamlined process to ensure safe, efficient, and future-proof EV charging solutions tailored to your home’s specific needs. We are committed to delivering exceptional service that aligns with your unique requirements.

Whether you reside in Berwick, Narre Warren, or any area in Melbourne’s outer east, we have the perfect EV charging solution to meet your distinct needs and energy demands. Our team is dedicated to providing the best possible outcomes for our clients, ensuring satisfaction and reliability.
